100 in stock
| Manufacturer: | Phoenix Contact |
| Product Category: | Pluggable Terminal Blocks |
| RoHS: | |
| Product: | Headers |
| Number of Positions: | 8 |
| Pitch: | 2.5 mm |
| Termination Style: | Solder Pin |
| Mounting Style: | Through Hole |
| Voltage Rating: | 160 V |
| Color: | Green |
| Series: | MCD |
| Brand: | Phoenix Contact |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Flammability Rating: | UL 94 V-0 |
| Height: | 25.7 mm |
| Length: | 17.5 mm |
| Product Type: | Pluggable Terminal Blocks |
| SPQ | 50 |
| Subcategory: | Terminal Blocks |
| Tradename: | COMBICON Control |
| Width: | 21.9 mm |
1894862

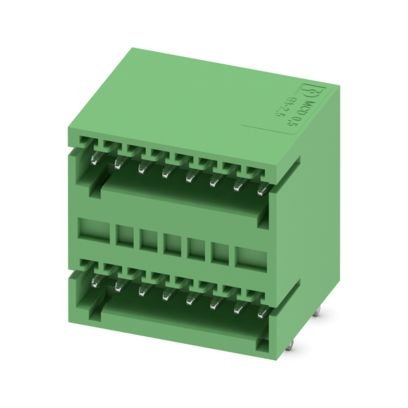

PCB headers, nominal cross section: 0.5 mm2, color: green, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCD 0,5/..-G1, pitch: 2.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard
