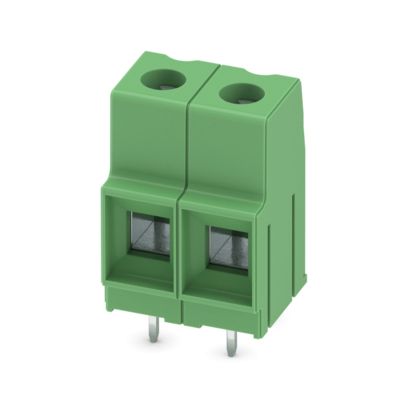

1773976. MKDSP 10N/ 2-10,16 - PCB terminal block
1773976. MKDSP 10N/ 2-10,16 - PCB terminal block - Image 2

1773976. MKDSP 10N/ 2-10,16 – PCB terminal block

50000 in stock

MKDSP 10N/ 2-10,16 – PCB terminal block
1773976

Datasheet :  Datasheet



Manufacturer: Phoenix Contact
Product Category: Fixed Terminal Blocks
RoHS: YES
Number of Positions: 2
Pitch: 10.16 mm
Connection Method: Screw
Current Rating: 76 A
Voltage Rating: 690 V
Wire Gauge Min: 20 AWG
Wire Gauge Max: 6 AWG
Mounting Style: PCB Mount
Series: MKDSP
Brand: Phoenix Contact
Contact Material: Copper
Height: 34.3 mm
Length: 18.4 mm
Product: Fixed Terminal Blocks
Product Type: Fixed Terminal Blocks
SPQ 50
Subcategory: Terminal Blocks
Termination Style: Through Hole
Tradename: COMBICON Power

Factory Lead Time:  8 Weeks

MKDSP 10N/ 2-10,16 – PCB terminal block

Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDSP 10N, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
