1000 in stock
| Manufacturer: | Phoenix Contact |
| Product Category: | DIN Rail Terminal Blocks |
| RoHS: | Yes |
| Type: | Feed Through Terminal Block |
| Number of Positions: | 1 Position |
| Current Rating: | 101 A |
| Voltage Rating: | 800 V |
| Connection Method: | Bolt |
| Color: | Gray |
| Housing Material: | Polyamide (PA) |
| Flammability Rating: | UL 94 V-2 |
| Mounting Style: | DIN Rail (NS 32, NS 35/7.5, NS 35/15) |
| Wire Gauge Min: | 16 AWG |
| Wire Gauge Max: | 4 AWG |
| Length: | 60 mm |
| Width: | 18 mm |
| Height: | 64.5 mm |
| Series: | OTTA |
| Packaging: | Bulk |
| Brand: | Phoenix Contact |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | – 60 C |
| Product Type: | DIN Rail Terminal Blocks |
| SPQ | 50 |
| Subcategory: | Industrial Terminal Blocks |

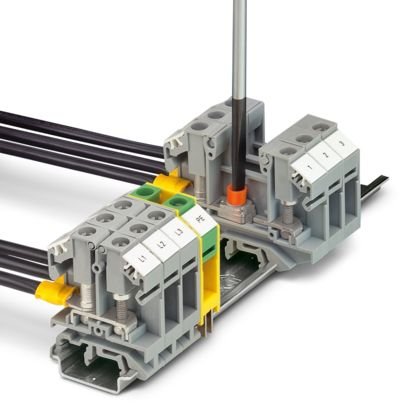

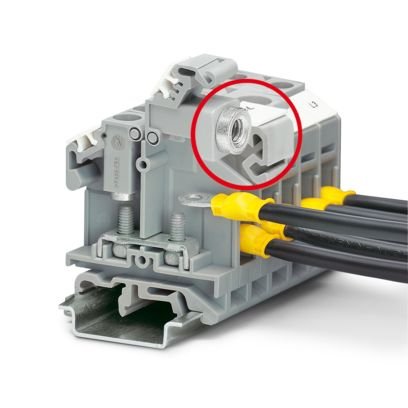

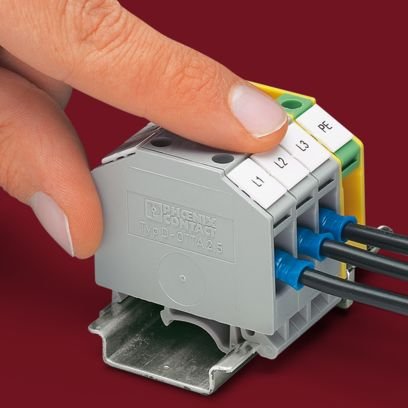

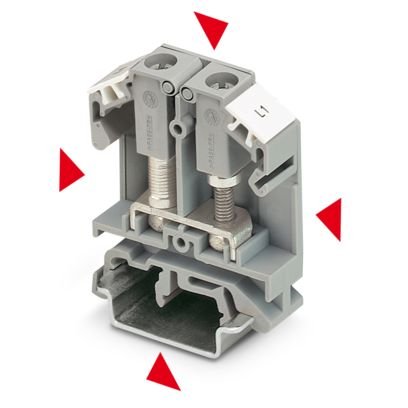

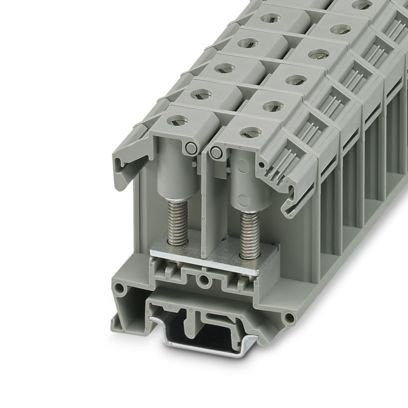

Universal terminal block with bolt connection, slotted-head screw, cross section: 1 … 25 mm2, width: 18 mm, color: gray
